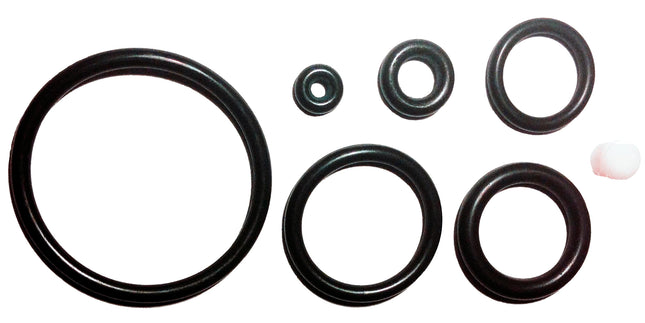

Maintain peak performance and reliability with the Mini 1st Stage Service Kit. This complete kit contains all essential replacement components required by an authorised technician to perform a full annual service on the Beaver Mini 1st Stage Pressure Reducing Valve. Complete Replacement Kit: Includes all wear-and-tear components necessary for a full Mini 1st Stage service. Professional Use: Designed for use by authorised and certified diving technicians only. Ensures Reliability: Keeps your Mini 1st Stage operating safely, efficiently, and in accordance with manufacturer specifications. Annual Maintenance: Recommended service interval is every 12 months of regular use to maintain peak performance. High-Quality Components: Manufactured to exacting standards for precision fit and long-lasting reliability. Specifications: • Product: Mini 1st Stage Service Kit • Compatibility: Beaver Mini 1st Stage (Item Code: CV MFS) • Recommended Service Interval: Every 12 Months • Use: Professional Diving Technician Maintenance • Country of Origin: EU • HS Code: 84818099

Read more less

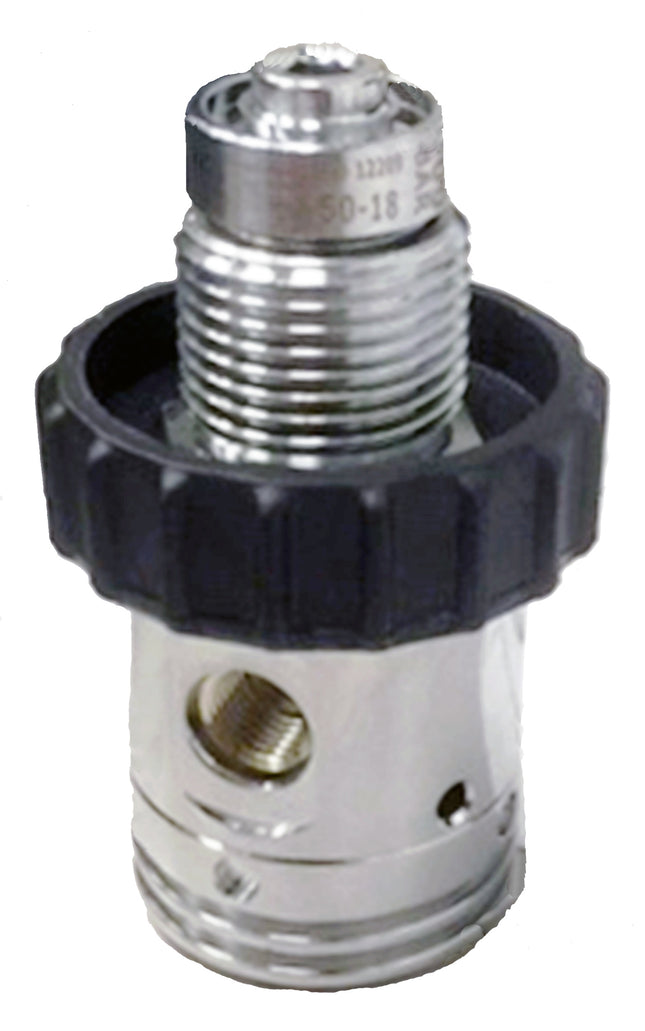

Engineered for precision and durability, the 300 Bar DIN Mini 1st Stage Pressure Reducing Valve delivers stable and reliable performance in non-breathing compressed air systems. This compact and robust regulator efficiently reduces cylinder pressure from up to 300 Bar to a consistent working pressure of approximately 8.5 Bar, making it ideal for a range of professional and technical applications. High Pressure Capability: Designed for cylinders up to 300 Bar, offering reliable performance for demanding environments. Accurate Pressure Regulation: Balanced design provides a consistent 8.5 Bar (120 psi) output across varying conditions and depths. Integrated Safety Valve: Internal overpressure relief activates automatically if outlet pressure exceeds 12.5–13 Bar. Port Configuration: One Low Pressure (3/8” x 24 UNF) outlet and one High Pressure (7/16” x 20 UNF) port for gauge connection. Durable Nickel-Plated Construction: Machined from a solid brass mono-block, sanded, polished, nickel-plated, and chromium-finished for maximum corrosion resistance. Certified Standards: Features a standard male 300 Bar DIN fitting manufactured to EN-144-1 / ISO 12209 and EN250:2014 compliance. Compact & Lightweight: Measures approximately 8.5cm x 5cm and weighs only 375g, ensuring portability and ease of use. Included Accessories: Supplied with a DIN fitting cap to protect threads on the high-pressure connection from damage and contamination. Applications: Ideal for non-breathing compressed air systems such as tyre inflation, argon suit inflation, and other industrial uses. Specifications: • Maximum Input Pressure: 300 Bar • Regulated Output Pressure: ~8.5 Bar (120 psi) • Overpressure Relief: 12.5–13 Bar • Low Pressure Port: 3/8” x 24 UNF • High Pressure Port: 7/16” x 20 UNF • Material: Nickel-Plated Brass Mono-Block • Dimensions: 8.5cm x 5cm • Weight: 375g • Certification: EN-144-1 / ISO 12209 / EN250:2014 • Supplied With: DIN Thread Protector Cap • Maintenance: Annual service recommended using Mini First Stage Service Kit (CV MFS SK)

Read more less

Compact, efficient, and precision-engineered — the 232 Bar DIN Mini 1st Stage Pressure Reducing Valve delivers reliable performance in non-breathing air applications. Designed for use where compressed air needs to be safely reduced from cylinder pressure to a stable working pressure, this high-quality regulator provides smooth and consistent output through a balanced design. Precise Pressure Regulation: Reduces air pressure from up to 232 Bar to a regulated outlet pressure of approximately 8.5 Bar (120 psi). Balanced Design: Ensures stable and consistent output across varying depths and conditions via a fixed turret mechanism. Safety Protection: Integrated overpressure relief valve activates if outlet pressure exceeds 12.5–13 Bar. Connection Ports: Features one Low Pressure (3/8” x 24 UNF) port and one High Pressure (7/16” x 20 UNF) port for gauge connection. Durable Construction: Manufactured from nickel-plated brass mono-block, sanded, polished, and chrome finished for superior corrosion resistance. EN Certified: Standard male 232 Bar DIN fitting in accordance with EN-144-1/ISO 12209 and EN250:2014 standards. Lightweight & Compact: Measures approximately 8cm x 5cm with a total weight of just 360g for easy handling and portability. Included Accessories: Supplied complete with DIN fitting cap to protect high-pressure threads from damage and contamination. Applications: Ideal for non-breathing air use such as tyre inflation, argon suit systems, and general pressure control applications. Specifications: • Maximum Input Pressure: 232 Bar • Regulated Output Pressure: ~8.5 Bar (120 psi) • Overpressure Relief: 12.5–13 Bar • Low Pressure Port: 3/8” x 24 UNF • High Pressure Port: 7/16” x 20 UNF • Material: Nickel-Plated Brass Mono-Block • Dimensions: 8cm x 5cm • Weight: 360g • Certification: EN-144-1 / ISO 12209 / EN250:2014 • Supplied With: DIN Thread Protector Cap • Service Interval: Annually (Use Mini First Stage Service Kit – CV MFS SK)
