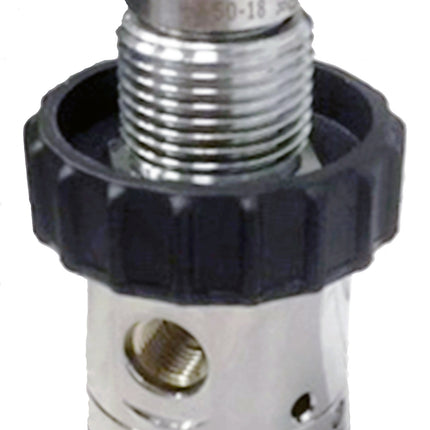

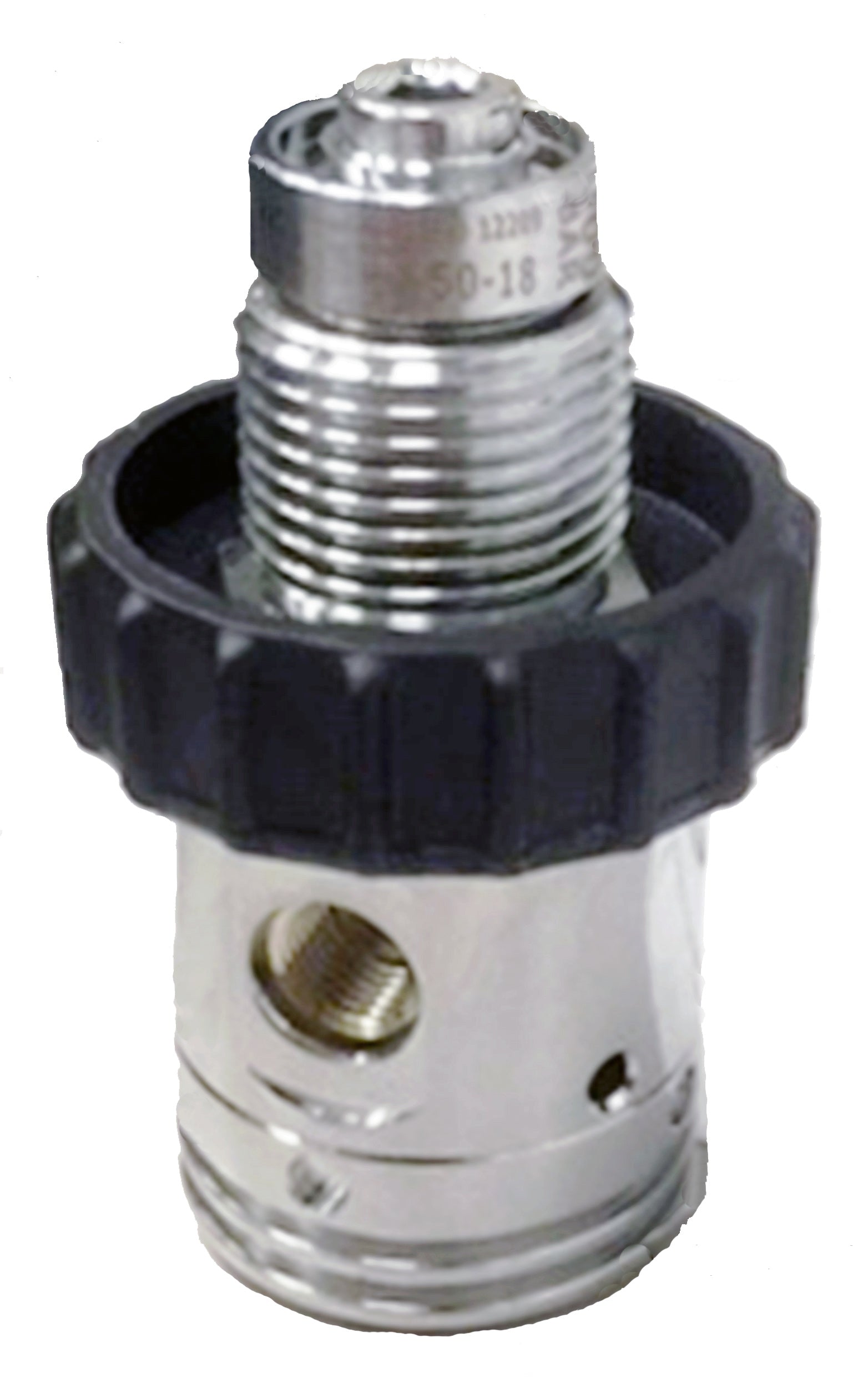

300 Bar DIN Mini 1st Stage Pressure Reducing Valve | Compact Air Regulator

Description

Engineered for precision and durability, the 300 Bar DIN Mini 1st Stage Pressure Reducing Valve delivers stable and reliable performance in non-breathing compressed air systems. This compact and robust regulator efficiently reduces cylinder pressure from up to 300 Bar to a consistent working pressure of approximately 8.5 Bar, making it ideal for a range of professional and technical applications.

  • High Pressure Capability: Designed for cylinders up to 300 Bar, offering reliable performance for demanding environments.
  • Accurate Pressure Regulation: Balanced design provides a consistent 8.5 Bar (120 psi) output across varying conditions and depths.
  • Integrated Safety Valve: Internal overpressure relief activates automatically if outlet pressure exceeds 12.5–13 Bar.
  • Port Configuration: One Low Pressure (3/8” x 24 UNF) outlet and one High Pressure (7/16” x 20 UNF) port for gauge connection.
  • Durable Nickel-Plated Construction: Machined from a solid brass mono-block, sanded, polished, nickel-plated, and chromium-finished for maximum corrosion resistance.
  • Certified Standards: Features a standard male 300 Bar DIN fitting manufactured to EN-144-1 / ISO 12209 and EN250:2014 compliance.
  • Compact & Lightweight: Measures approximately 8.5cm x 5cm and weighs only 375g, ensuring portability and ease of use.
  • Included Accessories: Supplied with a DIN fitting cap to protect threads on the high-pressure connection from damage and contamination.
  • Applications: Ideal for non-breathing compressed air systems such as tyre inflation, argon suit inflation, and other industrial uses.

Specifications:
• Maximum Input Pressure: 300 Bar
• Regulated Output Pressure: ~8.5 Bar (120 psi)
• Overpressure Relief: 12.5–13 Bar
• Low Pressure Port: 3/8” x 24 UNF
• High Pressure Port: 7/16” x 20 UNF
• Material: Nickel-Plated Brass Mono-Block
• Dimensions: 8.5cm x 5cm
• Weight: 375g
• Certification: EN-144-1 / ISO 12209 / EN250:2014
• Supplied With: DIN Thread Protector Cap
• Maintenance: Annual service recommended using Mini First Stage Service Kit (CV MFS SK)

300 Bar DIN Mini 1st Stage Pressure Reducing Valve | Compact Air Regulator

Product form

£90.95

    SKU: CV-MFS-3
    Barcode: 52112460
